T4 Supension page

All Prices include carriage UK mainland

Fitting service available on all suspension parts

Please call for details 01254 888416

We are authorised dealers for

VW T4 AVO springs VW T4 Vogtland springs VW T4 Gaz shocks

If you need further advise on your T4 suspension set up please call or E mail

Lowering T4's

We don't recommend lowering T4's more than 60mm, due to the design of the

suspension set up, a harsh ride will occur, unless the chassis is modded for extra clearance.



True progressive tapered end springs 19 mm rod diameter giving a true 1300kg carrying capacity

40mm drop with standard top spring shims

50mm drop with the 5mm shims supplied

TUV approved suits heavy laden vans with full interiors and or pop tops

 Made in Germany

Do not confuse these with the Vogtland 60mm springs that other retailers are selling

We do not sell the 60mm Vogtland springs as they are a different design to the 40's

And under test do not perform to a point where I would be happy to offer these to customers

VW T4 5 mm spring shims

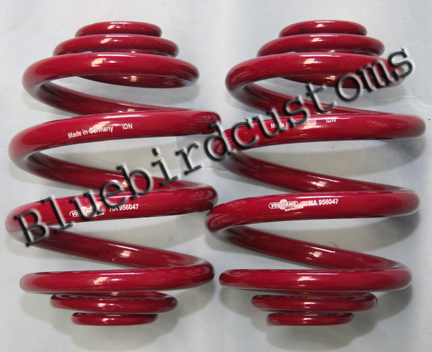

VW T4 Vogtland springs

175.00 includes VAT and UK mainland shipping

Come with 5 mm spring top shims worth 15.00

In Stock





True progressive tapered end springs 19 mm rod diameter giving a true 1300kg carrying capacity

Comes with 4 uprated heavy duty gas charged shocks

Ideal for  all T4's whether empty or fully converted

TUV approved suits heavy laden vans with full interiors and or pop tops.

2 year warranty

VW T4 5 mm spring shims

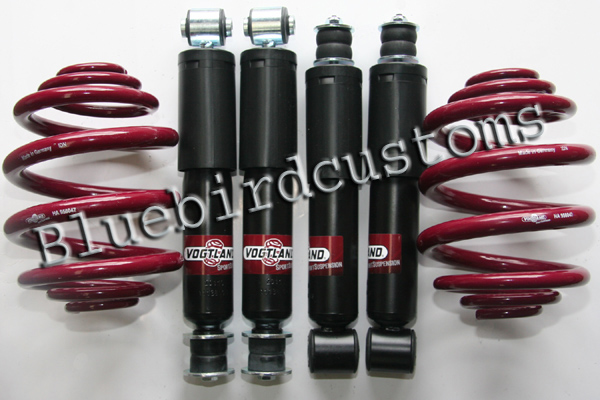

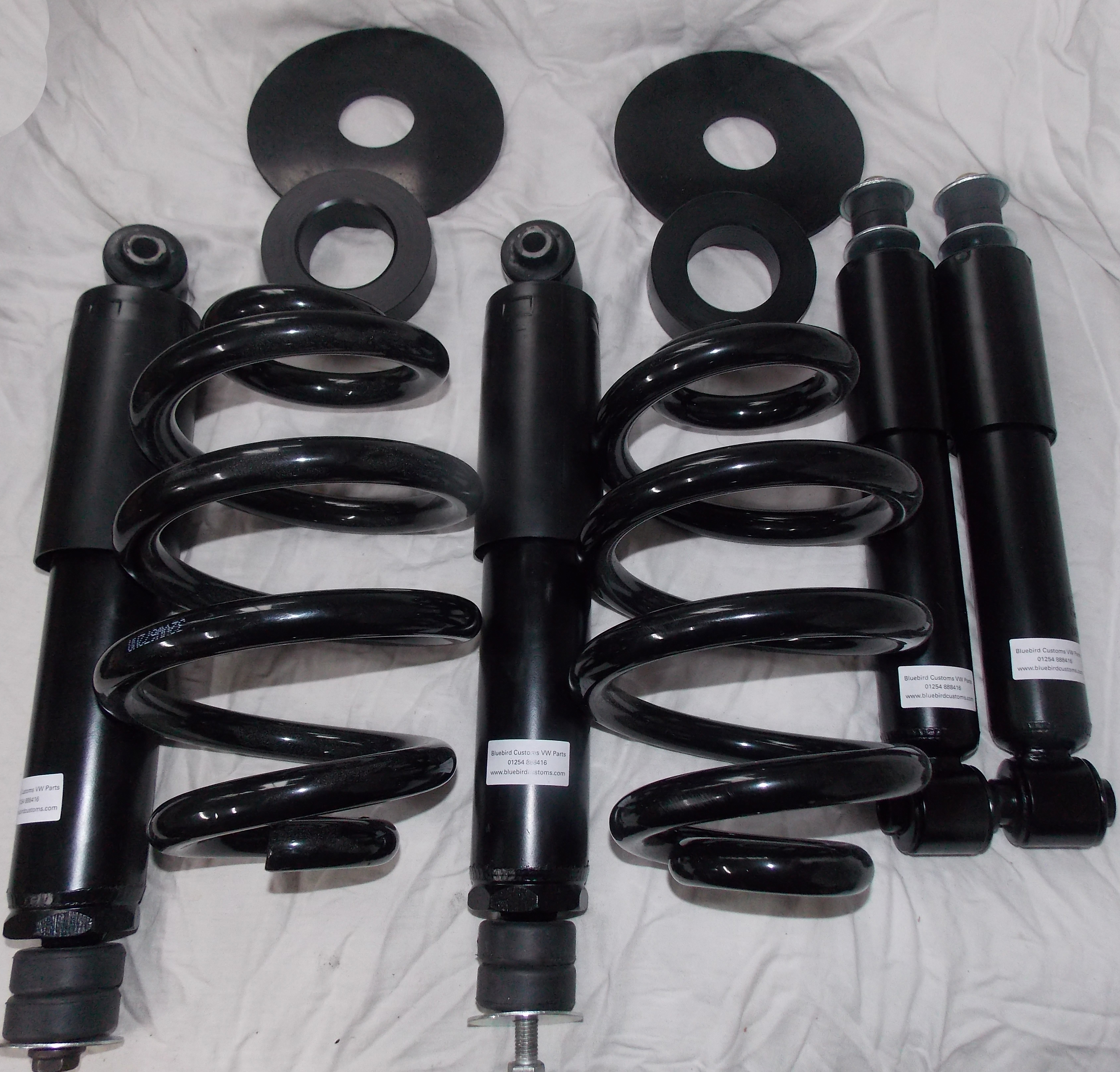

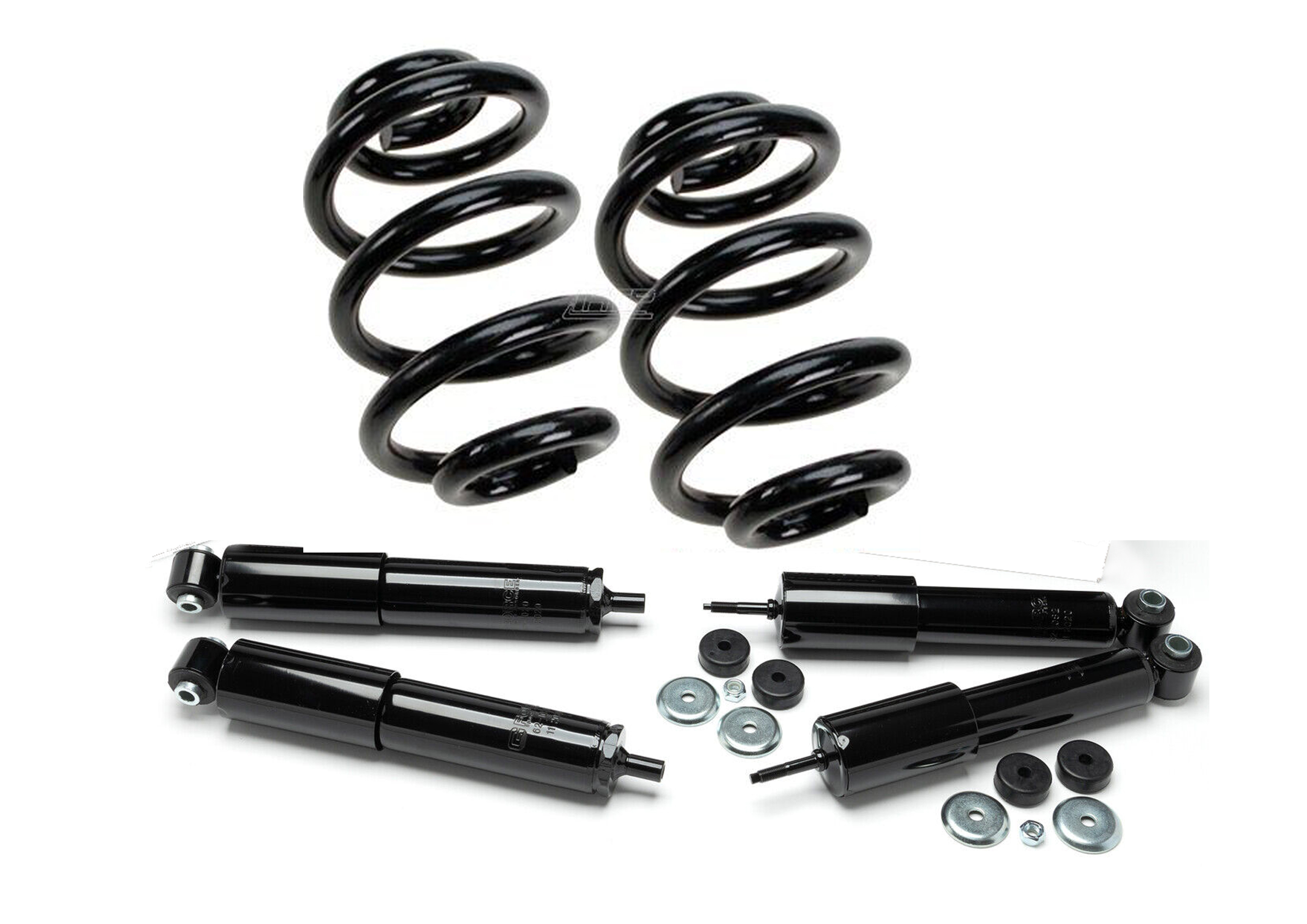

VW T4 Vogtland springs and shocks

Price including VAT and carriage UK mainland

365.00 come with 5 mm spring top shims worth 15.00

  Made in Germany

In Stock

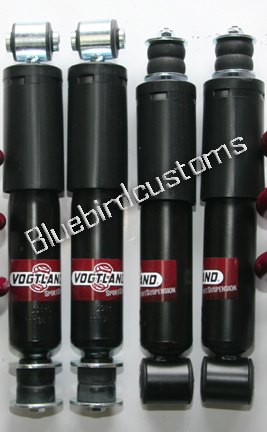

Uprated heavy duty gas charged shocks

Excellent quality

250.00 including VAT and carriage UK mainland

Made in Germany



VW T4 prosport springs  heavy duty

Heavy duty 45 mm drop rear springs

Good for medium to heavy converted vans

vans with interior cupboards and rock and roll bed

89.95 includes VAT and carriage UK Mainland





VW T4 Prosport springs 60mm

60 mm drop rear springs

Light weight SWB vans

vans with rock and roll bed and very basic cuboards

 65.00





VW T4 5 mm spring shims

Rear spring top shim made from 5mm industrial grade rubber with a similar shore strength to the original VW item can be fitted in place of the factory shim and

lowers the vehicle an extra 10-14mm (depends on the thickness of the original top shim)

Can also be placed above the factory shim for fine tuning your ride height in increments of 5mm

sold as a pair

15.00 inclusive

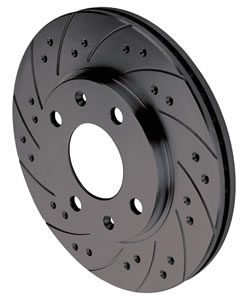

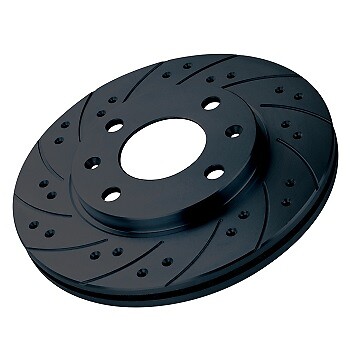

VW T4 black diamond brake discs

For the ultimate in stopping power and controlled braking

VW T4 blackdiamond brake disc

Since their launch in 1992 the Black Diamond performance brake disc and pad range has gone from strength to strength.

The first fast car test in 1995 in which black diamond was awarded the win against all the other major brands,

it became clear that all the design and testing work prior to the launch was so very worth while.

The 24 groove disc, the groove shape and profile and the post machining heat treatment all playing their part in making this product a world beater.

To order :-Identify your vehicle from the lists below.

Scroll down and place your order using the order code

All discs are drilled and grooved for maximum heat disipation and effiency and are direct replacement items

Please note these are a special order item and cannot be canceled once ordered please allow upto 10 days for delivery.

Do not book garage space or time untill delivered.

Any problems please call 01254 888416

Black Diamond Predator brake pads

Front VW T4 Predator brake pads

An ultra low dust high friction, high temperature compound with a heat transfer layer next to the backing plate

to transfer heat away from the disc and pad enabling operating temperatures of slightly over 520deg with no fade at all.

Black Diamond predator pads complement the black diamond disc range perfectly or if you wish you can gain extra

braking performance by using the black diamond predator pads on their own with standard discs

Please check which calipers  you have on your van as the pads are different

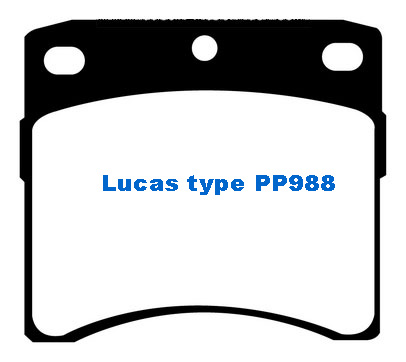

Lucas type are square in shape and held in with two pins Order code PP988

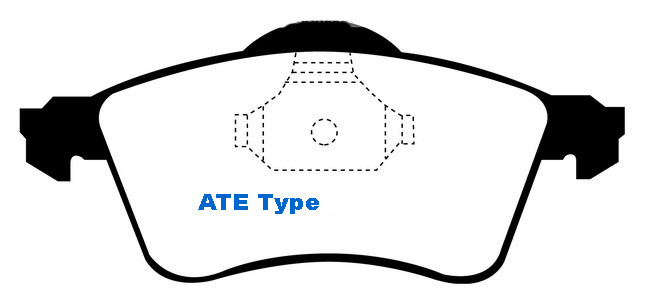

ATE type are the more common ones and are  oblong in shape with ears and held in place with a front retaining spring

Predator brake pads are priced up as sets of 4

Price includes VAT and UK Mainland delivery

All discs are drilled and grooved for maximum heat disipation and effiency and are direct replacement items

Model

Type

cc

Year

Front solid

Order code

Disc Dia

T4 Caravelle/Transporter  (90-96)

1.8

1781cc

90-93

F-S

KBD   306

260.0   Dia

T4 Caravelle/Transporter  (90-96)

1.9 Diesel

1896cc

90-96

F-S

KBD   306

260.0   Dia

T4 Caravelle/Transporter  (90-96)

1.9 Turbo Diesel

1895cc

90-96

F-S

KBD   306

260.0   Dia

T4 Caravelle/Transporter  (90-96)

2.0

1984cc

90-96

F-S

KBD   306

260.0   Dia

T4 Caravelle/Transporter  (90-96)

2.4 Diesel

2370cc

90-96

F-S

KBD   306

260.0   Dia

 KBD 306 140.00 Drilled and grooved



Predator brake pads 976 to fit KBD 306 discs  59.95 set of 4



All discs are drilled and grooved for maximum heat disipation and effiency and are direct replacement items

Model

Type

cc

Year

Front Vented

Order code

Disc Dia

T4 Caravelle/Transporter  (90-96)

2.5

2461cc

90-96

F-V

 KBD  307

280.0  Dia

T4 Caravelle/Transporter  (90-96)

2.5 Syncro

2461cc

90-96

F-V

 KBD  307

280.0  Dia

T4 Caravelle/Transporter  (90-96)

2.5 Diesel

2459cc

90-96

F-V

 KBD  307

280.0  Dia

T4 Caravelle/Transporter  (90-96)

2.5 Turbo Diesel

2459cc

90-96

F-V

 KBD  307

280.0  Dia

  KDB 307   155.00 Drilled and grooved



 Predator brake pads pp661 to fit KBD 307 discs 59.95  set of 4



All discs are drilled and grooved for maximum heat disipation and effiency and are direct replacement items

Model

Type(wheel sizes are what the van came from the factory with)

cc

Year

Front solid

Order code

Disc Dia

T4 Caravelle/Transporter  (90-96)

2.4 Diesel (15" Wheels)

2370cc

90-96

F-S

KBD  619

282.0  Dia

T4 Caravelle/Transporter  (90-96)

1.9 Turbo Diesel (15" Wheels)

1895cc

90-96

F-S

KBD  619

282.0  Dia

T4 Caravelle/Transporter  (90-96)

2.0 (15" Wheels)

1984cc

90-96

F-S

KBD  619

282.0  Dia

KDB 619 165.00 Drilled and grooved



 Predator brake pads PP970 to fit KBD 619 discs 59.95 set of 4



All discs are drilled and grooved for maximum heat disipation and effiency and are direct replacement items

Model

Type

cc

Year

Front solid

Order code

Disc Dia

T4 Caravelle/Transporter  (96 ->)

1.9 Turbo Diesel

1896cc

96 ->

F-S

KBD 932

282.0  Dia

T4 Caravelle/Transporter  (96 ->)

2.0

1984cc

96 ->

F-S

KBD 932

282.0  Dia

T4 Caravelle/Transporter  (96 ->)

2.4 Diesel

2370cc

96 ->

F-S

KBD 932

282.0  Dia

T4 Caravelle/Transporter  (96 ->)

2.4 Diesel Syncro

2370cc

96 ->

F-S

KBD 932

282.0  Dia

KDB 932 132.50 drilled and grooved



 Predator brake pads pp662 to fit KBD 932 discs 61.95 set of 4



All discs are drilled and grooved for maximum heat disipation and effiency and are direct replacement items

Model

Type (wheel sizes are what the van came from the factory with)

cc

Year

Front vented

Order code

Disc Dia

T4 Caravelle/Transporter  (96 ->)

2.5 (15" Wheels)

2461cc

96 ->

F-V

KBD 933

280.0 Dia

T4 Caravelle/Transporter  (96 ->)

2.5 Syncro (15" Wheels)

2461cc

96 ->

F-V

KBD 933

280.0 Dia

T4 Caravelle/Transporter  (96 ->)

2.5 Turbo Diesel TDi (15" Wheels)

2459cc

96 ->

F-V

KBD 933

280.0 Dia

T4 Caravelle/Transporter  (96 ->)

2.5 Turbo Diesel TDi Syncro (15" Wheels)

2459cc

96 ->

F-V

KBD 933

280.0 Dia

T4 Caravelle/Transporter  (96 ->)

2.8 VR6 (15" Wheels)

2792cc

96 ->

F-V

KBD 933

280.0 Dia

KDB 933 139.00 Drilled and grooved



 Predator brake pads pp820 to fit KBD 933 discs 59.95 set of 4



All discs are drilled and grooved for maximum heat disipation and effiency and are direct replacement items

Model

Type(wheel sizes are what the van came from the factory with)

cc

Year

Front vented

Order code

disc Dia

T4 Caravelle/Transporter  (96 ->)

2.5 (16" Wheels)

2461cc

98 ->

F-V

KBD1074

300.0 Dia

T4 Caravelle/Transporter  (96 ->)

2.5 Syncro (16" Wheels)

2461cc

98 ->

F-V

KBD1074

300.0 Dia

T4 Caravelle/Transporter  (96 ->)

2.5 Turbo Diesel TDi (16" Wheels)

2459cc

98 ->

F-V

KBD1074

300.0 Dia

T4 Caravelle/Transporter  (96 ->)

2.5 Turbo Diesel Syncro (16" Wheels)

2459cc

98 ->

F-V

KBD1074

300.0 Dia

T4 Caravelle/Transporter  (96 ->)

2.8 VR6 (16" Wheels)

2792cc

98-4/00

F-V

KBD1074

300.0 Dia

 KDB 1074 145.95 Drilled and grooved



 Predator brake pads pp 838to fit KBD 1074 discs 69.95 set of 4



All discs are drilled and grooved for maximum heat disipation and effiency and are direct replacement items

Model

Type(wheel sizes are what the van came from the factory with)

cc

Year

Front vented

Order cod

Disc Dia

T4 Caravelle/Transporter  (96 ->)

2.8 VR6 (16" Wheels)

2792cc

5/00 ->

F-V

KBD1157

313.0 Dia

KDB 1157 148.95 Drilled and grooved



 Predator brake pads 601 to fit KBD 1157 discs 59.95 set of 4



Please check which calipers  you have on your van as the pads are different

Lucas type are square in shape and held in with two pins Order code PP988

Priced as sets of 4 includes VAT and UK mainland delivery

69.95



    Predator brake pads for Lucas type caliper pp988



VW T4 blackdiamond discs

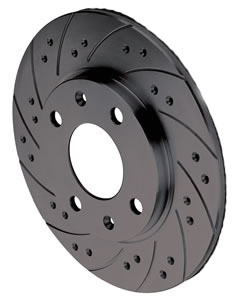

Rear Solid brake discs Drilled and grooved

Wheel sizes given are what the vehicle came from the factory with.

 Predator brake pads are priced as sets of 4 includes VAT and UK mainland delivery

 All discs are drilled and grooved for maximum heat disipation and effiency and are direct replacement items

Model

Type(wheel sizes are what the van came from the factory with)



Year

Rear solid

Order code

Disc Dia

T4 Caravelle/Transporter  (96 ->)

All Models  Rear Disc (15"Wheels)



96 ->

R-S

KBD 934

280.0 Dia

KDB 934 120.00 Drilled and grooved  rear disc



 Predator brake pads pp854 to fit KBD 934 discs 59.95 set of 4





 All discs are drilled and grooved for maximum heat disipation and effiency and are direct replacement items

Model

Type (wheel sizes are what the van came from the factory with)



Year

rear solid

Order code

Disc Dia

T4 Caravelle/Transporter  (96 ->)

All Models  Rear Disc (16" Wheels)



98 ->

R-S

KBD1075

294.0 Dia

 KDB 1075 148.95 Drilled and grooved  rear disc



 Predator brake pads pp 825 to fit KBD 1075 discs 69.95 set of 4

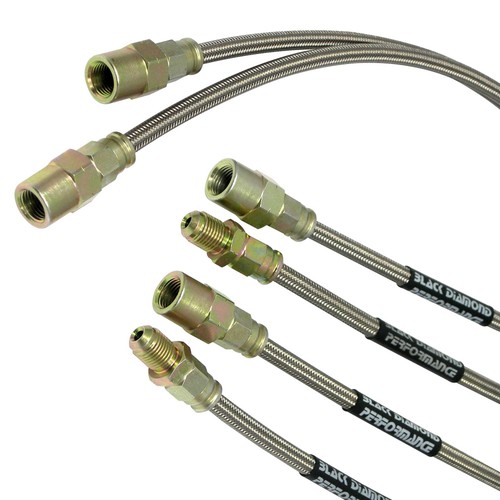

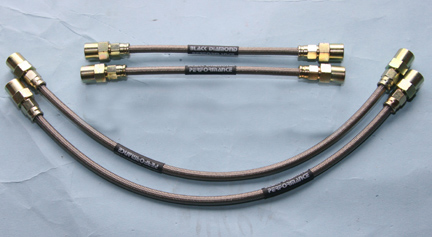

Black Diamond high performance braided stainless brake lines

won't expand like rubber brake lines giving a more responsive braking and reduced braking distance

Two kits are available - 4 line kit for vans upto 96 -  6 line kit for vans 96 on.

4 line kit 79.95



/p>

6 line kit 82.50
